Misurazione in formato S-DIAS

La serie super compatta S-DIAS è molto più di un semplice sistema I/O.
Oltre alle schede di ingresso e uscita digitali e analogiche, la serie include moduli funzionali per diversi compiti di automazione: controllo, sicurezza, motion e molto altro ancora.
I moduli S-DIAS possono essere combinati liberamente e adattati con precisione a ogni applicazione.

AI031 - AC Current Measuring Module

AI031 – AC Current Measuring Module

  • 3 analog current inputs
    (12 bits)
  • Measurement range 0-5 A AC
  • for low voltage network
EE121-1 - Energy Measuring

EE121-1 – Energy Measuring

  • 3 voltage inputs
  • Range 0-520 V AC
  • 12 current inputs
  • Range 0-2 A AC
AI040 - Analog Input

AI040 – Analog Input

  • 4 analog inputs
  • IEPE interface
  • Condition Monitoring
AI022 - Analog Input

AI022 – Analog Input

  • 2 strain gauge inputs (24 bits)
  • Measurement range ±1,875
    to ±120 mV
  • Evaluation of measuring bridges
DM811 - Absolute Pressure Input

DM811 – Absolute Pressure Input

  • Absolute pressure input
  • PT100 temperature input
  • 8 digital inputs
    (+24 V DC/3.7 mA/0.5 ms)
DM822 - Differential Pressure Input

DM822 – Differential Pressure Input

  • 2 differential pressure inputs (12 bits)
  • -2068 to +2068 mbar
  • 8 digital inputs
    (+24 V DC/3.7 mA/0.5)
AI022-1 - Analog Input

AI022-1 – Analog Input

  • 2 strain gauge inputs (24 bits)
  • Measurement range ±1,25
    to ±80 mV
  • Evaluation of measuring bridges
AI043 - Analog Input

AI043 – Analog Input

  • 4 analog inputs (16 bits) for resistance or temperature
  • 5 resistance measuring ranges from 0-5000 Ω
  • Supported temperature sensors: PT100/PT1000/NI100/NI1000/diverse KTY
AI046 - Analog Input

AI046 – Analog Input

  • 4 analog inputs (18 bits)
  • 2 adjustable measurement ranges ±11 V or ±1.1 V
AI047 - Analog Input

AI047 – Analog Input

  • 4 analog current inputs
    (17 bits)
  • Measurement range 0-22 mA
    or 4-22 mA
AI075 - Analog Input

AI075 – Analog Input

  • 6 analog inputs
    (±10 V DC/16 bits)
  • Can be used as potentiometer inputs (0-100 %/16 bits)
  • 1 KTY/PT1000 temperature input
  • 1 reference output
    (+10 V DC/15 mA)
AO026 - Analog Output

AO026 – Analog Output

  • 2 analog outputs
  • Voltage/current switchable
  • Voltage ±10 V DC/16 bits
  • Current 0-20 mA or
    4-20 mA/16 bits
AO046 - Analog Output

AO046 – Analog Output

  • 4 analog outputs
  • Voltage/current switchable
  • Voltage ±10.8 V DC/16 bits
  • Current 0-21.6 mA/16 bits
BC031 - Gyroscope Sensor Module

BC031 – Gyroscope Sensor Module

  • Bus coupler module
  • 1x Ethernet
  • 1x RS485

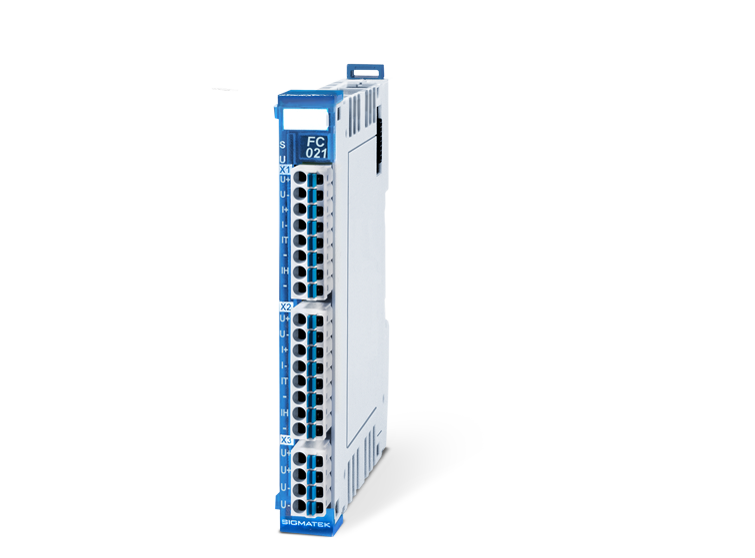

FC021 - Counter Input

FC021 – Counter Input

  • 2 digital RS422 inputs
  • 2 digital TTL inputs
  • 2 digital HTL inputs
