Motion

Flexible drive system with high dynamics

For any application: With an optimized and fully integrated drive concept, the efficiency of the machine – and the energy efficiency in particular – can be increased.

SIGMATEK provides you with a coordinated motion control system, in which drives, motors, gears and software interact perfectly. They achieve highly dynamic, precise motion sequences – in real time and from one source. At the same time, our modular motion system provides you with complete freedom in designing your drive solution.

1–15 di 39 risultati

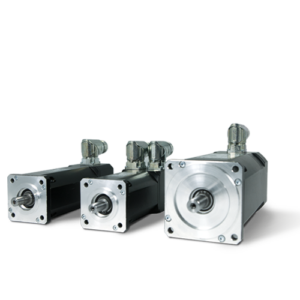

AKM 1 – Servo Motor

  • Rated power Pn: 0,14 – 0,30 kW
  • Rated speed nn: 8000 min-1
  • Motor standstill torque M0: 0.18 – 0.41 Nm
  • Rated torque Mn: 0.17 – 0.36 Nm
  • Peak torque M0max: 0.61 – 1.46 Nm

AKM 1 Low Voltage – Servo Motor

  • Rated power Pn: 0,02 – 0,23 kW
  • Rated speed nn: 1000-8000 min-1
  • Motor standstill torque M0: 0.18 – 0.31 Nm
  • Rated torque Mn: 0.16 – 0.30 Nm
  • Peak torque M0max: 0.59 – 1.05 Nm

AKM 2 – Servo Motor

  • Rated power Pn: 0.28 – 0.94 kW
  • Rated speed nn: 2000 – 8000 min-1
  • Motor standstill torque M0: 0.48 – 1.42 Nm
  • Rated torque Mn: 0.39 – 1.32 Nm
  • Peak torque M0max: 1.47 – 4.82 Nm

AKM 2 Low Voltage – Servo Motor

  • Rated power Pn: 0.05 – 0.59 kW
  • Rated speed nn: 1200 – 8000 min-1
  • Motor standstill torque M0: 0.43 – 0.88 Nm
  • Rated torque Mn: 0.35 – 0.85 Nm
  • Peak torque M0max: 1.38 – 2.80 Nm

AKM 3 – Servo Motor

  • Rated power Pn: 0.28 – 1.31 kW
  • Rated speed nn: 1000 – 7000 min-1
  • Motor standstill torque M0: 1.15 – 2.88 Nm
  • Rated torque Mn: 0.95 – 2.64 Nm
  • Peak torque M0max:  3.88 – 10.22 Nm

AKM 3 Low Voltage – Servo Motor

  • Rated power Pn: 0.26 – 0.64 kW
  • Rated speed nn: 2000 – 8000 min-1
  • Motor standstill torque M0: 1.25 Nm
  • Rated torque Mn: 0.76 – 1.23 Nm
  • Peak torque M0max: 4.12 Nm

AKM 4 – Servo Motor

  • Rated power Pn: 0.24 – 1.73 kW
  • Rated speed nn: 1200 – 6000 min-1
  • Motor standstill torque M0: 1.95 – 6 Nm
  • Rated torque Mn: 1.58 – 5.22 Nm
  • Peak torque M0max: 6.12 – 20.4 Nm

AKM 5 – Servo Motor

  • Rated power Pn: 0.55 – 3.83 kW
  • Rated speed nn: 1000 – 6000 min-1
  • Motor standstill torque M0: 4.70 – 14.4 Nm
  • Rated torque Mn: 1.95 – 12.9 Nm
  • Peak torque M0max: 11.6 – 38.4 Nm

AKM 6 – Servo Motor

  • Rated power Pn: 1.87 – 6.45 kW
  • Rated speed nn: 1200 – 6000 min-1
  • Motor standstill torque M0: 11.9 – 25 Nm
  • Rated torque Mn: 5.7 – 20.2 Nm
  • Peak torque M0max: 29.7 – 65.2 Nm

AKM 7 – Servo Motor

  • Rated power Pn: 3.94 – 7.46 kW
  • Rated speed nn: 1200 – 3000 min-1
  • Motor standstill torque M0: 29.4 – 53 Nm
  • Rated torque Mn: 20.1 – 43.5 Nm
  • Peak torque M0max: 78.5 – 143 Nm

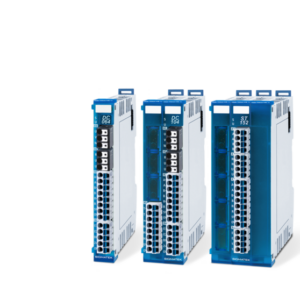

DC 061-1 – Servo Motor Output Stage

  • +48 V DC, 6 A continuous current and 15 A peak current
  • Resolver input for positioning feedback (12 bits)
  • 2-channel enable input for STO Safe Torque Off (SIL 3/PL e, Cat. 4)
  • Holding brake
  • External regen resistor optional
  • For controlling a synchronous servo motor

DC 062 – Servo Motor Output Stage

  • +48 V DC, 6 A continuous current and 15 A peak current
  • Incremental encoder input of position feedback (16 bits)
  • 2-channel enable input for STO Safe Torque Off (SIL 3/PL e, Cat. 4)
  • Holding brake
  • External regen resistor optional
  • For controlling a synchronous servo motor

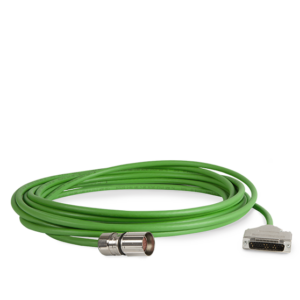

DIAS Drives 100_S-DIAS DC 06X – Motor Cable

  • For motors with or without holding brake
  • Preassembled and shielded on both ends
  • Round connectors on the motor and module connectors
  • Drag chain suitable, highly flexible (5 mil. bending cycles)
  • Available lengths: 1 m, 1.5 m, 2 m, 3 m, 4 m, 5 m, 10 m, 15 m, 20 m, 25 m

DIAS Drives 300 – Motor Cable

  • For motors with or without holding brake
  • Preassembled and shielded on both ends
  • Round connectors on the motor and module connectors
  • Drag chain suitable, highly flexible (5 mil. bending cycles)
  • Available lengths: 5 m, 10 m, 15 m, 20 m
