Analog Input

Alta funzionalità in un formato compatto

La serie super compatta S-DIAS è molto più di un semplice sistema I/O.
Oltre alle schede di ingresso e uscita digitali e analogiche, la serie comprende moduli funzionali per diversi compiti di automazione: controllo, sicurezza, motion e molto altro ancora.
I moduli S-DIAS possono essere combinati liberamente e configurati con precisione in base alla tua applicazione.

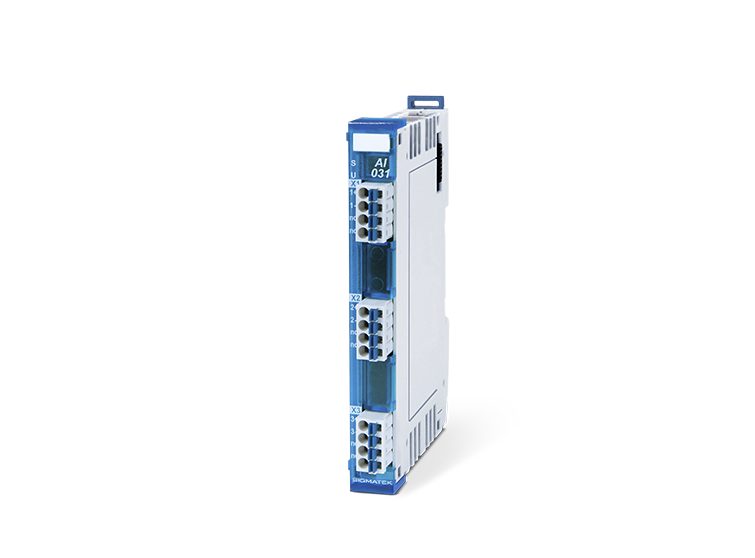

AI031 - AC Current Measuring Module

AI031 – AC Current Measuring Module

  • 3 analog current inputs
    (12 bits)
  • Measurement range 0-5 A AC
  • for low voltage network
AI022 - Analog Input

AI022 – Analog Input

  • 2 strain gauge inputs (24 bits)
  • Measurement range ±1,875
    to ±120 mV
  • Evaluation of measuring bridges
AI022-1 - Analog Input

AI022-1 – Analog Input

  • 2 strain gauge inputs (24 bits)
  • Measurement range ±1,25
    to ±80 mV
  • Evaluation of measuring bridges

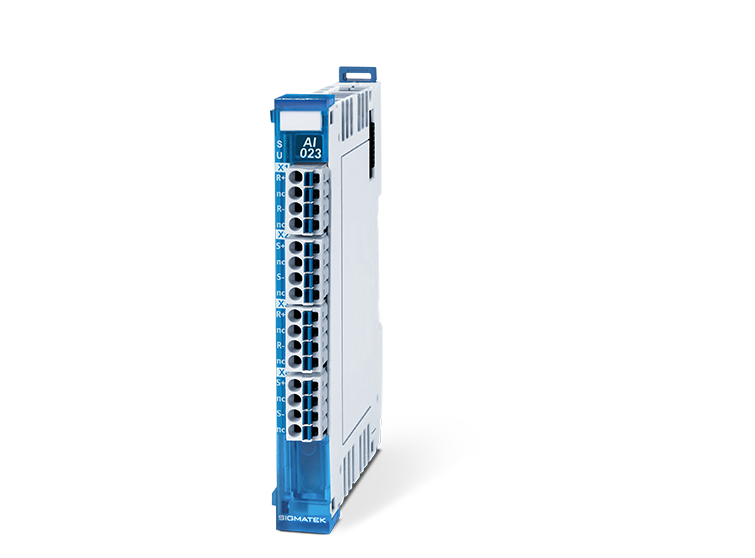

AI023 - Analog Input

AI023 – Analog Input

  • 2 analog inputs (16 bits) for resistance or temperature
  • 5 resistance measuring ranges from 0-5000 Ω
  • Supported temperature sensors: PT100/PT1000/NI100/NI1000/diverse KTY
AI043 - Analog Input

AI043 – Analog Input

  • 4 analog inputs (16 bits) for resistance or temperature
  • 5 resistance measuring ranges from 0-5000 Ω
  • Supported temperature sensors: PT100/PT1000/NI100/NI1000/diverse KTY

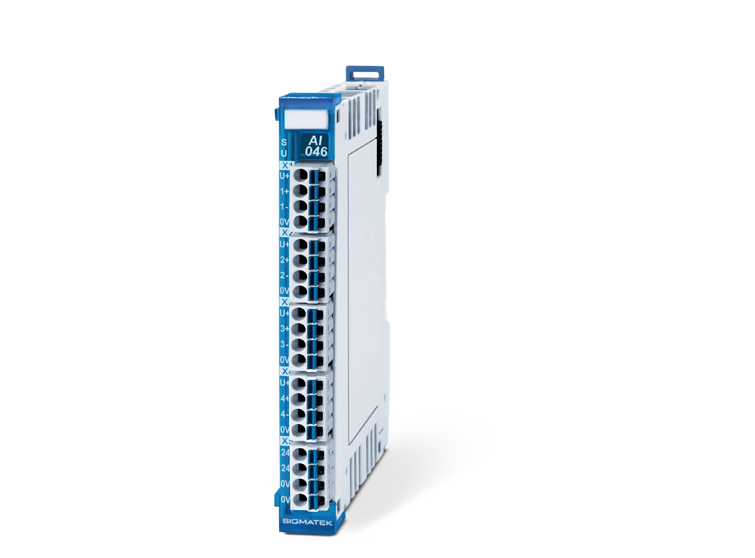

AI046 - Analog Input

AI046 – Analog Input

  • 4 analog inputs (18 bits)
  • 2 adjustable measurement ranges ±11 V or ±1.1 V
AI047 - Analog Input

AI047 – Analog Input

  • 4 analog current inputs
    (17 bits)
  • Measurement range 0-22 mA
    or 4-22 mA
AI075 - Analog Input

AI075 – Analog Input

  • 6 analog inputs
    (±10 V DC/16 bits)
  • Can be used as potentiometer inputs (0-100 %/16 bits)
  • 1 KTY/PT1000 temperature input
  • 1 reference output
    (+10 V DC/15 mA)
AI0812 - Analog Input

AI0812 – Analog Input

  • 8 analog PT1000/KTY inputs
    (16 bits)
  • Measurement range -50
    to +850 °C

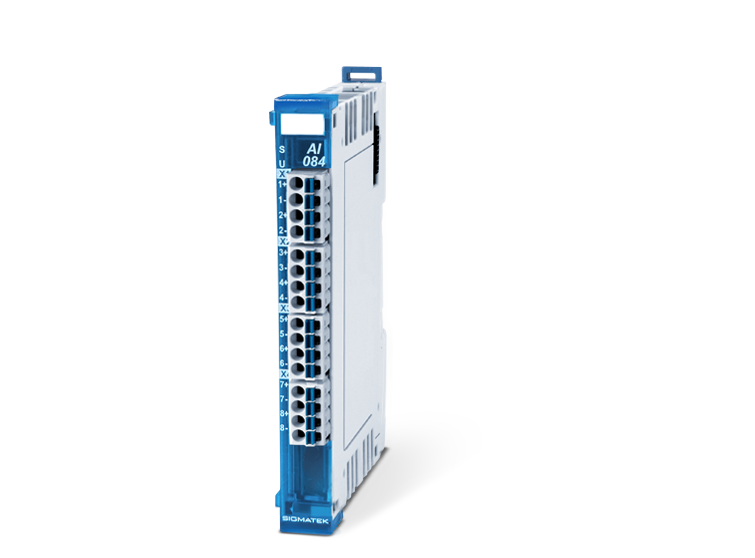

AI084 - Analog Input

AI084 – Analog Input

  • 8 analog current inputs
    (16 bits)
  • Measurement range 0-20
    or 4-20 mA
AI088 - Analog Input

AI088 – Analog Input

  • 8 analog thermo element
    inputs (16 bits)
  • 2 analog KTY inputs (16 bits)
  • Measurement range -80 … +1820 °C / 0-40 mV
AI088-1 - Analog Input

AI088-1 – Analog Input

  • 8 analog thermo element
    inputs (16 bits)
  • 2 analog KTY inputs (16 bits)
  • Measurement range -80 … +1820 °C / 0-50 mV
