Special Functions

Funzioni Speciali

S-DIAS è attrezzato per qualsiasi compito
La serie super compatta S-DIAS è molto più di un semplice sistema I/O.
Oltre alle schede di ingresso e uscita digitali e analogiche, la serie comprende moduli funzionali per vari compiti di automazione: controllo, sicurezza, motion e molto altro ancora.
I moduli S-DIAS possono essere combinati liberamente e configurati con precisione in base alle esigenze della tua applicazione.

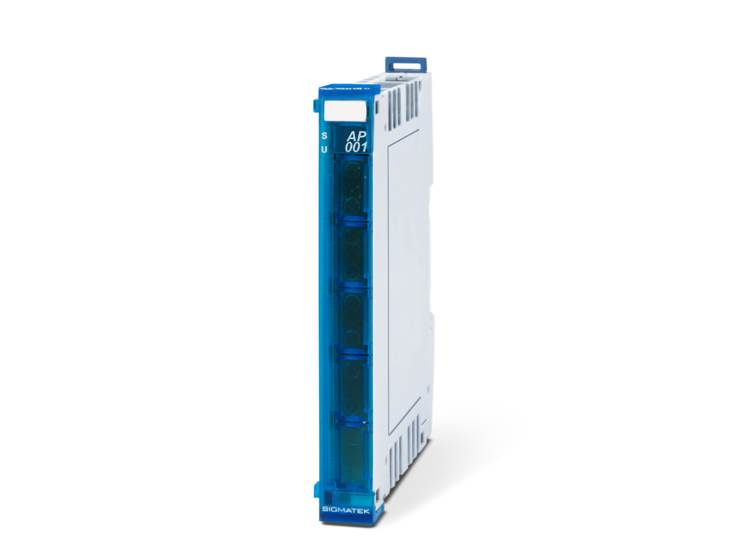

AP 001 - S/X-DIAS Adapter Module, connessione per moduli I/O e PLC SIGMATEK

AP001 – S/X-DIAS Adapter Module

  • Interface for X-DIAS modules

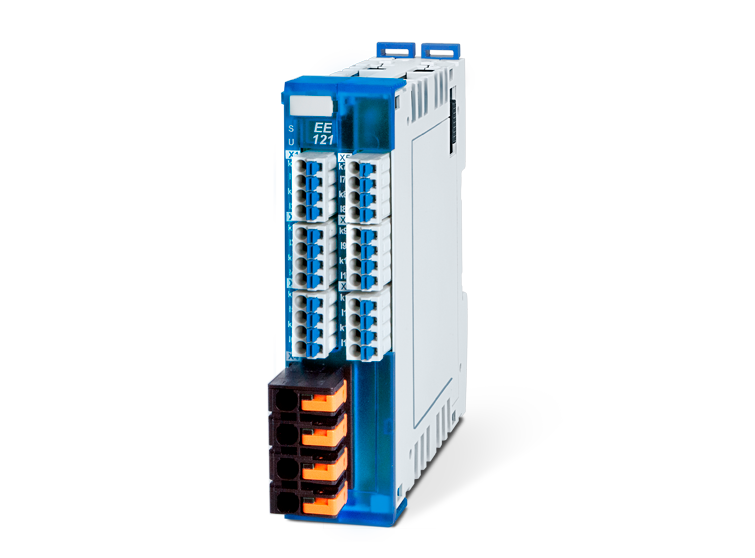

EE121-1 - Energy Measuring

EE121-1 – Energy Measuring

  • 3 voltage inputs
  • Range 0-520 V AC
  • 12 current inputs
  • Range 0-2 A AC
AI040 - Analog Input

AI040 – Analog Input

  • 4 analog inputs
  • IEPE interface
  • Condition Monitoring

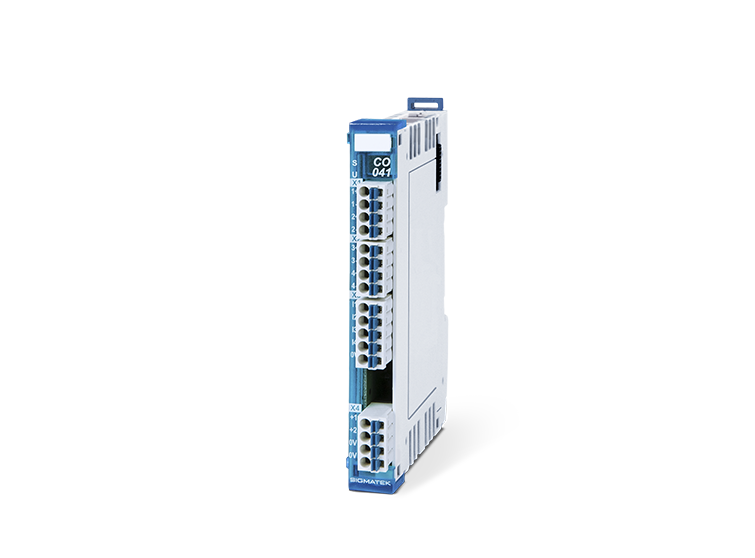

CO041 - Current Output

CO041 – Current Output

  • 4 current-controlled outputs/pulse outputs
  • 4 digital inputs +5 V
AI022 - Analog Input

AI022 – Analog Input

  • 2 strain gauge inputs (24 bits)
  • Measurement range ±1,875
    to ±120 mV
  • Evaluation of measuring bridges

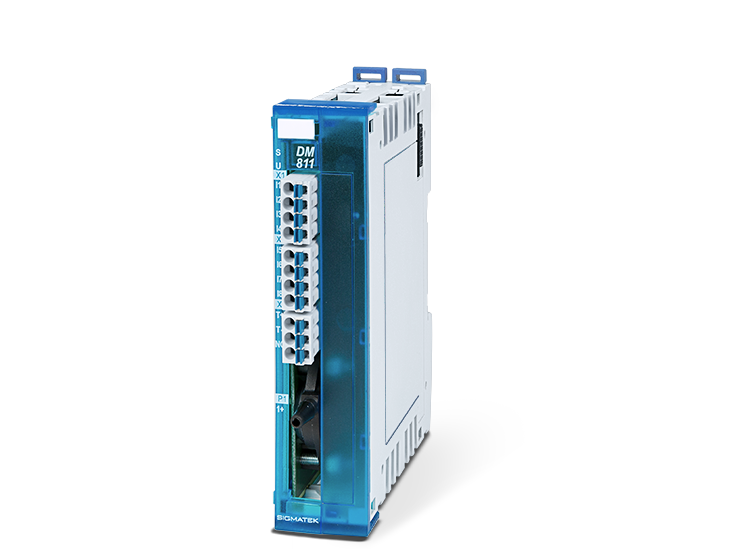

DM811 - Absolute Pressure Input

DM811 – Absolute Pressure Input

  • Absolute pressure input
  • PT100 temperature input
  • 8 digital inputs
    (+24 V DC/3.7 mA/0.5 ms)
EZ101 - Digital Input

EZ101 – Digital Input

  • 10 digital inputs
    (+24 V DC/6.9 mA)
  • Delay time: 5 ms
  • Euromap interface
DM822 - Differential Pressure Input

DM822 – Differential Pressure Input

  • 2 differential pressure inputs (12 bits)
  • -2068 to +2068 mbar
  • 8 digital inputs
    (+24 V DC/3.7 mA/0.5)
AI022-1 - Analog Input

AI022-1 – Analog Input

  • 2 strain gauge inputs (24 bits)
  • Measurement range ±1,25
    to ±80 mV
  • Evaluation of measuring bridges

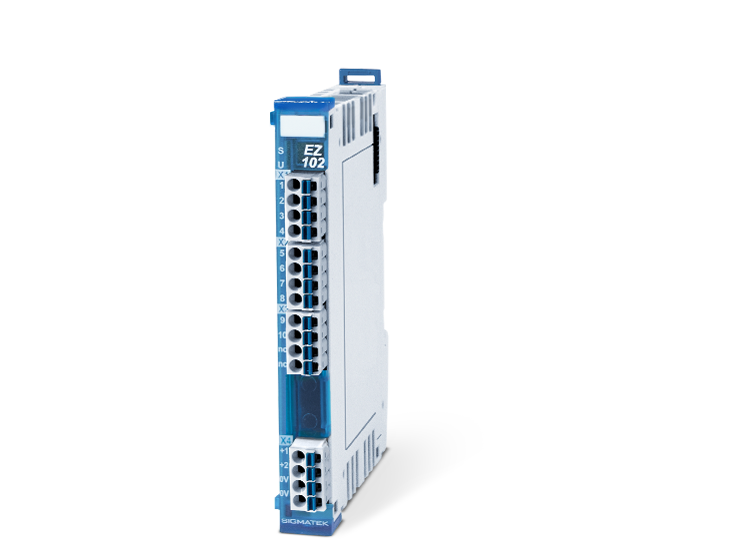

EZ102 - Digital Output

EZ102 – Digital Output

  • 10 digital outputs
    (+24 V DC/100 mA)
  • Euromap interface
EZ122 - Digital Output

EZ122 – Digital Output

  • Potential distribution
  • 9x +24 V DC, 9x 0 V (GND)
  • Electr. short-circuit protection
  • Current limited

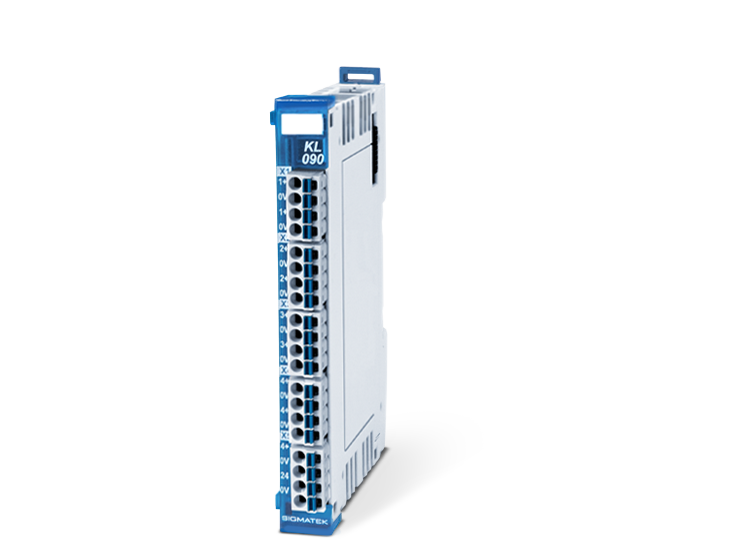

KL090 - Power Supply

KL090 – Power Supply

  • Potential distribution
  • 9x +24 V DC, 9x 0 V (GND)
  • Electr. short-circuit protection
  • Current limited
PW022 - PWM Module

PW022 – PWM Module

  • 2 PWM outputs
  • For pulse width modulation
  • Adjustable frequency
PW161 - PWM Module

PW161 – PWM Module

  • 16 digital outputs
  • For pulse width modulation
RO041 - Relay Output

RO041 – Relay Output

  • 4 relay outputs
  • Normally open contacts
  • +24 V DC, 6 A or +230 V AC, 6 A
