La serie super compatta S-DIAS è molto più di un semplice sistema I/O.
Oltre alle schede di ingresso e uscita digitali e analogiche, la serie comprende moduli funzionali per diversi compiti di automazione: controllo, sicurezza, motion e molto altro ancora.
I moduli S-DIAS possono essere combinati liberamente e adattati con precisione alle esigenze di ogni applicazione industriale.

DC061-1 - Servo Motor Output Stage

DC061-1 – Servo Motor Output Stage

  • +48 V DC, 6 A continuous /
    15 A peak current
  • 1 resolver input (12 bits)
  • 1 STO (2-channel enable input)
  • Controls synchronous servo motor
DC062 - Servo Motor Output Stage

DC062 – Servo Motor Output Stage

  • +48 V DC, 6 A continuous /
    15 A peak current
  • 1 incremental encoder input (16 bits)
  • 1 STO (2-channel enable input)
  • Controls synchronous servo motor
DC 064 - Drive Module, I/O modules, HMI, PLC, versatile connectivity for automation.

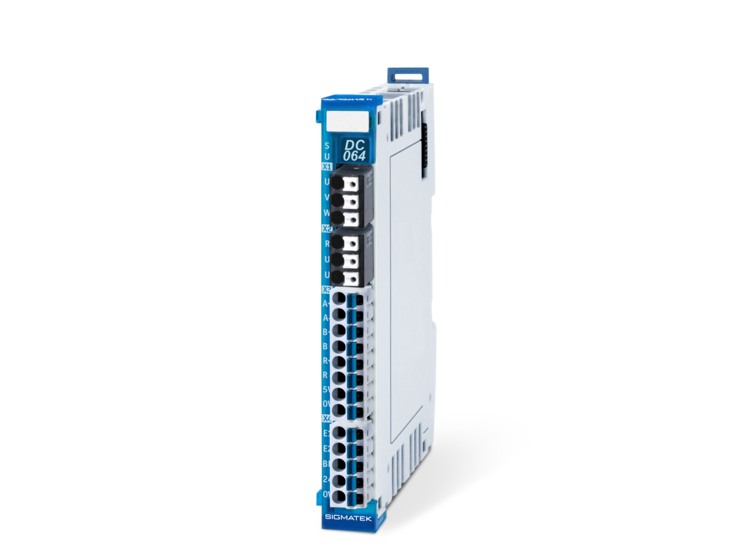

DC064 – Drive Module

  • +48 V DC, 6 A continuous /
    15 A peak current
  • 1 brake chopper
  • 1 universal encoder input
  • 1 STO (2-channel enable input)
  • 1 motor temperature sensor input
  • Controls synchronous servo motor/DC motor
DC101 - Servo Motor Output Stage

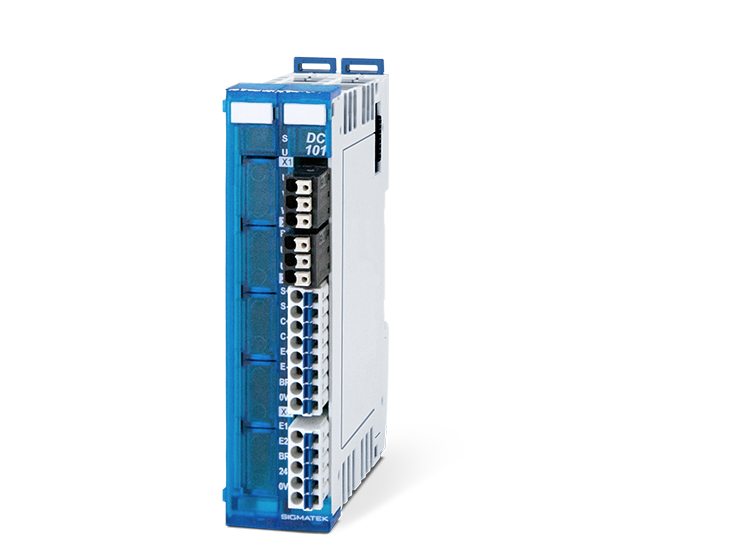

DC101 – Servo Motor Output Stage

  • +48 V DC, 10 A continuous /
    20 A peak current
  • 1 resolver input (12 bits)
  • 1 STO (2-channel enable input)
  • Controls synchronous servo motor
DC 102 - Servo Motor Output Stage con moduli I/O e interfaccia HMI per PLC.

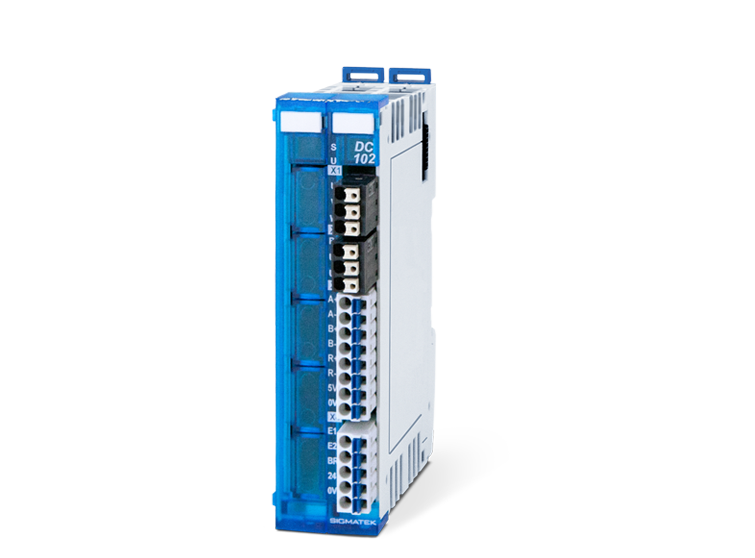

DC102 – Servo Motor Output Stage

  • +48 V DC, 10 A continuous /
    20 A peak current
  • 1 incremental encoder input (16 bits)
  • 1 STO (2-channel enable input)
  • Controls synchronous servo motor
DC 104 - Drive Module con moduli I/O e interfaccia di comunicazione supportata

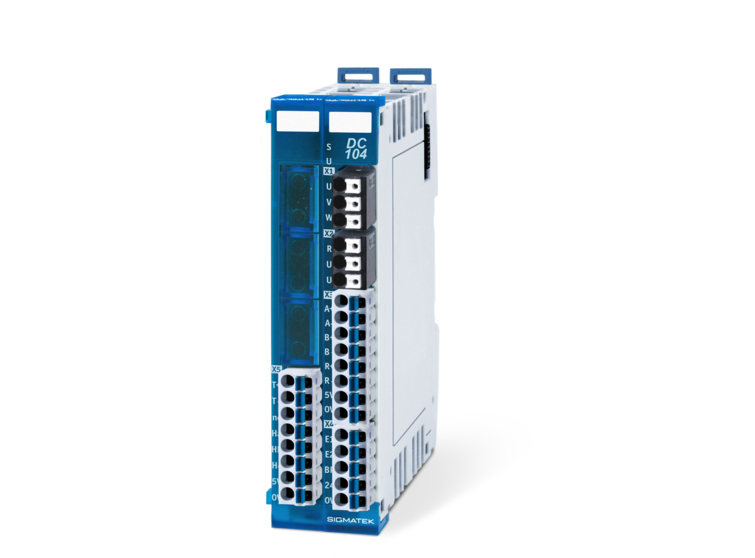

DC104 – Drive Module

  • +48 V DC, 10 A continuous /
    20 A peak current
  • 1 brake chopper
  • 1 universal encoder input
  • 1 STO (2-channel enable input)
  • 1 motor temperature sensor input
  • Controls synchronous servo motor/DC motor
SR 011-1 - DC Motor Output Stage: Moduli I/O, HMI, PLC, 24V DC, 10A max.

SR011 – DC Motor Output Stage

  • +50 V DC, 5 A
  • 1 incremental encoder input
  • 2 enable inputs +24 V/
    3 mA/0.5 ms
  • 1 digital output +24 V/0.5 A
  • PWM frequency: 32 kHz
  • Current controller frequency: 16 kHz
  • Controls DC brush motors

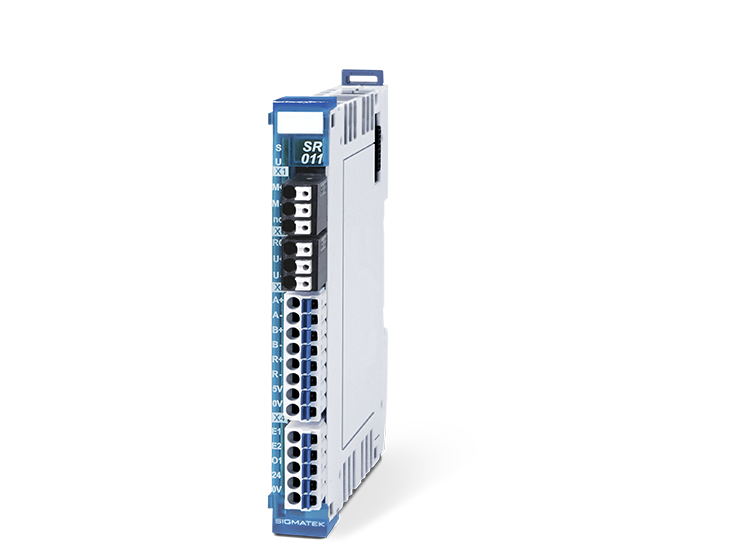

SR 011-1 - DC Motor Output Stage: Moduli I/O, HMI, PLC, 24V DC, 10A max.

SR011-1 – DC Motor Output Stage

  • 50 V DC, 5 A
  • 1 incremental encoder input
  • 2 enable inputs +24 V/
    3 mA/0.5 ms
  • 1 digital output +24 V/0.5 A
  • PWM frequency: 2 kHz
  • Current controller frequency: 2 kHz
  • Controls DC brush motors
SR012 - DC Motor Output Stage

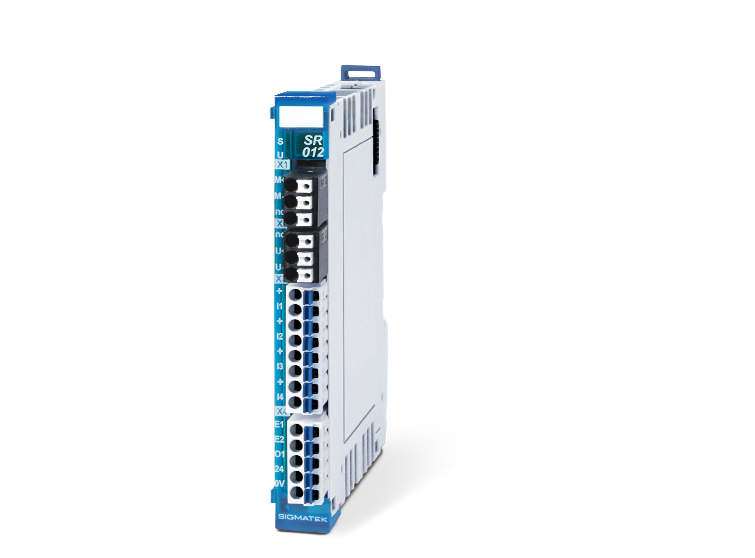

SR012 – DC Motor Output Stage

  • 50 V DC, 0-5 A
  • 2 enable inputs +24 V/
    3 mA/0.5 ms
  • 4 digital inputs +24 V/
    3.7 mA/5 ms
  • 1 digital output +24 V/0.2 A
  • Controls DC brush motors
ST151 - Stepper Motor Output Stage

ST151 – Stepper Motor Output Stage

  • 50 V DC, 5 A
  • 1 brake chopper
  • 1 incremental encoder input
  • 1 STO (2-channel Enable input)
  • 2 latch / digital inputs
ST 152 - Stepper Motor Output Stage Closed Loop con moduli I/O, HMI, PLC per controllo avanzato

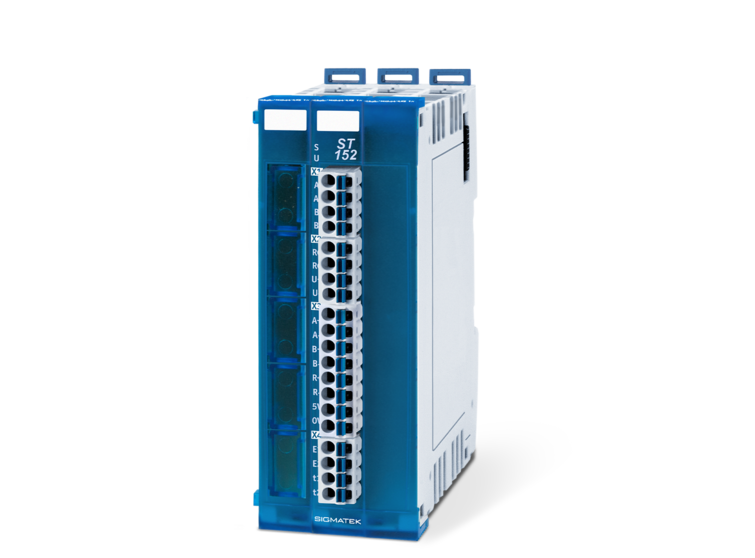

ST152 – Stepper Motor Output Stage Closed Loop

  • +50 V DC/5 A with Closed Loop control
  • 1 brake chopper
  • 1 incremental encoder input
  • 1 STO (2-channel Enable input)
  • 2 latch / digital inputs
SR020 - Current Controller

SR020 – Current Controller

  • DC motor current controller
  • +12-30 V DC, 0-3.5 A
  • Power LED drive
SR022 - Current Controller

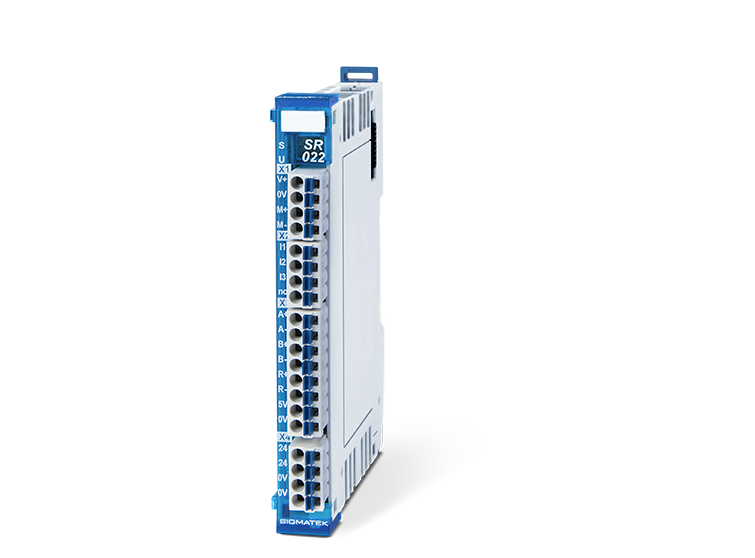

SR022 – Current Controller

  • DC motor current controller
  • +12-30 V DC, 0-3.5 A
  • 1 incremental encoder input
  • 1 digital input +5 V
  • 2 digital inputs +24 V

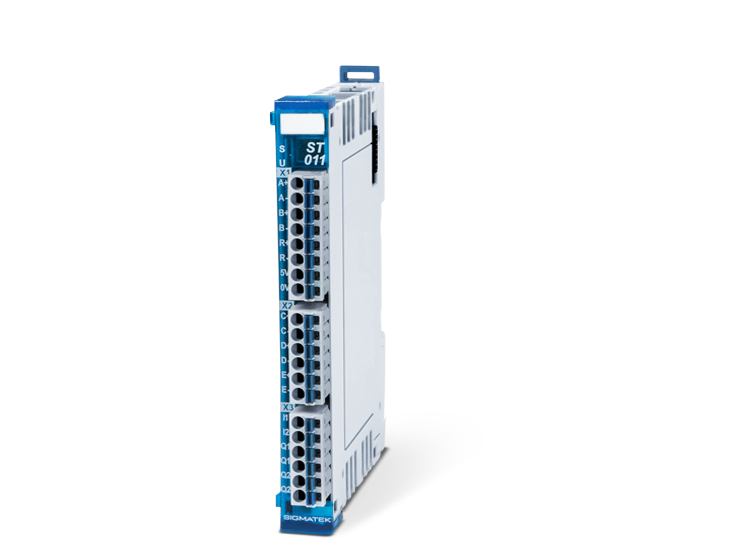

ST011 - Stepper Module

ST011 – Stepper Module

  • 1 frequency output
  • 1 incremental encoder input
  • 2 digital in and outputs each
  • Controls drive power components
