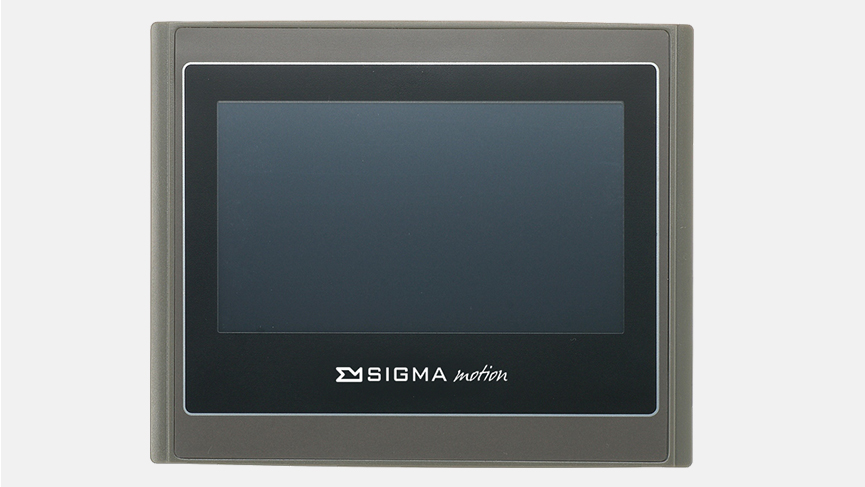

PT043 – WST4B
|
Display |
Size | 4.3″ diagonal (16:9) |
| Max. Resolution | 480 x 272 | |
| Type | TFT LCD | |
| Max. Colors | TFT Ture Color ; 65536 Colori | |
| Backlight Type | LED | |
| Backlight Life (hr) | 20000 | |
| Display Contrast | 500 | |
| Luminance (cd/m2) | 400 | |
| Operation | RTOS | |
| Touch Panel | 4 Wire Analog Touch Panel | |
| CPU | CPU RISC ARM 32Bit 200MHz | |
| Backup SRAM | 128 KB | |
| Working Memory | 32 MB | |
| Built-in Storage | 8 MB (NOR Flash) + 128 MB (NAND Flash) | |
| Real Time Clock (RTC) | Yes | |
| CommunicationInterface | Micro-SD Slot | Yes |
| USB Client | Yes | |
| USB Host | Yes | |
| Serial | COM1 RS232/RS422/RS485 | |
| COM2 RS232/RS485 | ||
| COM3 RS232 | ||
| Ethernet | N.A | |
| Power | Supply Voltage | 24VDC±10% Isolated |
| Consumption | 5W | |
| Environment | Operating Temperature | -10~60° |
| Relative Humidity | 10%~90% | |
| Ingress Protection | IP66 | |
| Cooling | Natural Cooling | |
| Dimension | Dimension WxHxD (mm) | 130.0 x 106.2 x 39 |
| Cutout Dimension WxH (mm) | 119.0 x 93.0 | |
| Net Weight (kg) | 0.33 KG |
